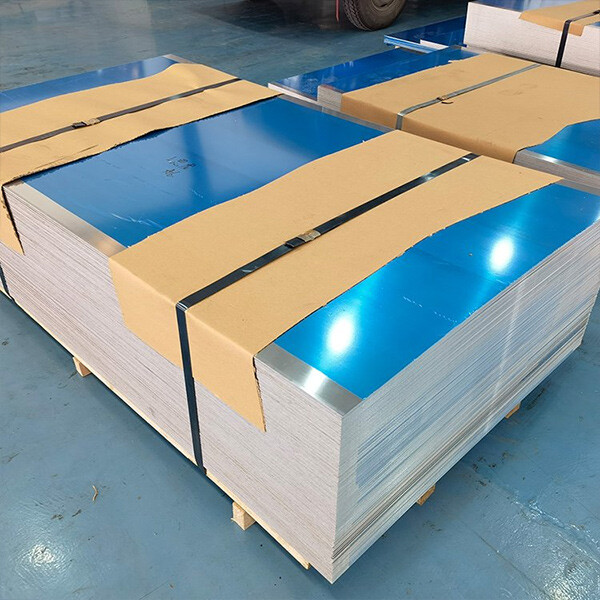

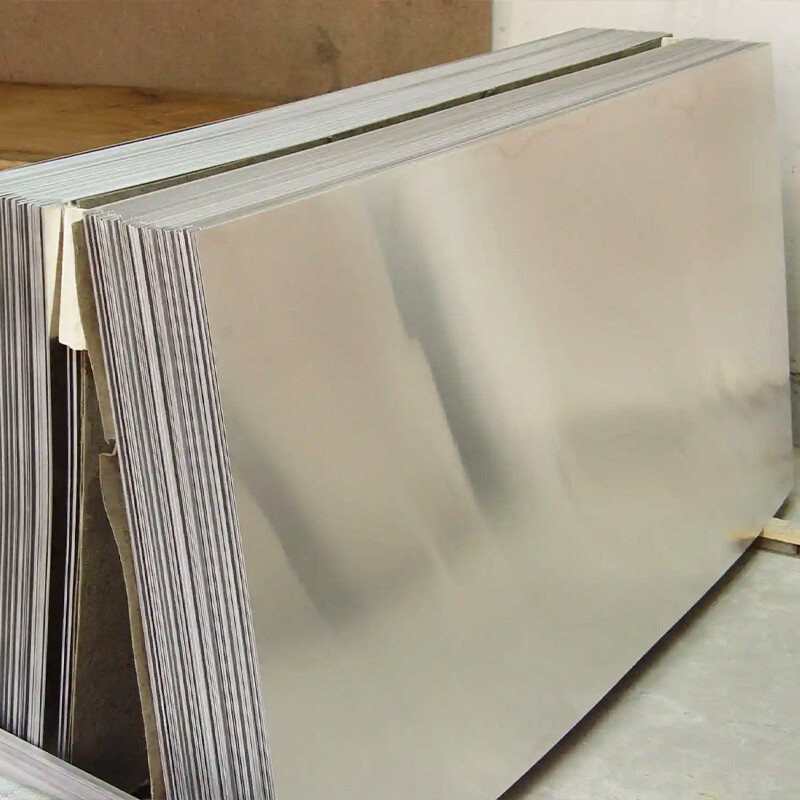

5052 ALUMINUM PLATE

5052 aluminum plate is an AL-Mg alloy aluminum plate. Magnesium is the main alloying element in 5052 alloy aluminum plate. It is the most widely used rust-proof aluminum. This alloy has high strength, especially fatigue strength: high plasticity and corrosion resistance, cannot be strengthened by heat treatment, good plasticity during semi-cold hardening, low plasticity during cold hardening, good corrosion resistance, good weldability, poor machinability, and can be polished.

Aluminum-magnesium alloy also contains a small amount of manganese, chromium, beryllium, titanium, etc. Except for a small amount of solid solution, most of the manganese in the alloy forms MnAl6. The role of chromium in 5052 aluminum plate is similar to that of manganese, which improves the resistance to stress corrosion cracking, improves the strength of the base metal and weld, and reduces the tendency of welding cracks, but its content generally does not exceed 0.35%.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total	Al: Min.
1050	0.25	0.4	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.5
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.6
1070	0.2	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.7
1100	0.95 Si + Fe		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.1	0.25	0.15	0.05	0.15	margin
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.1	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.5	0.5	3.8~4.9	0.3~0.9	1.2~1.8	0.1	0.25	0.15	0.05	0.15	margin
3003	0.6	0.7	0.05~0.20	1.0~1.5	-	-	0.1	-	0.05	0.15	margin
3A21	0.6	0.7	0.2	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	margin
3004	0.3	0.7	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	margin
3005	0.6	0.7	0.3	1.0~1.5	0.2~0.6	0.1	0.25	0.1	0.05	0.15	margin
3105	0.6	0.7	0.3	0.3~0.8	0.2~0.8	0.2	0.4	0.1	0.05	0.15	margin
5005	0.3	0.7	0.2	0.2	0.5~1.1	0.1	0.25	-	0.05	0.15	margin
5052	0.25	0.4	0.1	0.1	2.2~2.8	0.15~0.35	0.1	-	0.05	0.15	margin
5754	0.4	0.4	0.1	0.5	2.6~3.6	0.3	0.2	0.15	0.05	0.15	margin
5A05	0.5	0.5	0.1	0.3-0.6	4.8-5.5	-	0.2	-	0.05	0.05	margin
5083	0.4	0.4	0.1	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	margin
6061	0.40~0.8	0.7	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	margin
6082	0.70~1.3	0.5	0.1	0.4~1.0	0.6~1.2	0.25	0.2	0.1	0.05	0.15	margin
7075	0.4	0.5	1.2~2.0	0.3	2.1~2.9	0.18~0.28	5.1~6.1	0.2	0.05	0.15	margin
